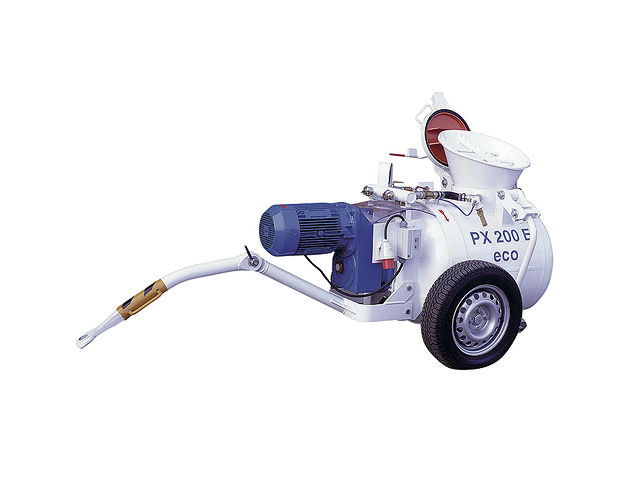

PX 200 eco
Pneumatic conveyor
Adequate performance - surprising conveyance distance – simple operation – minimum investment: these are all synonyms for PNEUMIX® PX 200 eco, a pneumatic concrete mix conveyer. Don’t worry and connect your external compressor to the air system of the conveyor: from now on, the preparation of concrete and screed mixes and their conveyance to the desired spot will be just a matter of simple routine. A convenient, easy and fast cost-efficient solution for conveyance of wet concrete and screed mixes over larger distances.
Parametry
Technical spefification | Dimensions | ||
Hopper capacity | 250 l | Lenght | 2600 mm |
Effective capacity | 200 l | Width | 1100 mm |
Output | 4 m3/h | Height | 1100 mm |
Grain | 16 mm | Weight | 620 kg |
Delivery distance | Min. compressor performance | ||
horizontally | 150 m | Performance | 5 - 10 m3/min |
vertikally | 80 m | Pressure | 6,9 - 10 bar |
E-motor | 7,5 kW |
Accessories
Conveying hose DN 65 á 20 m | 2 psc |
Conveying hose DN 65 á 10 m | 1 pcs |
Tripod | 1 pcs |
Coupling DN 65 | 4 pcs |
Coupling SKG 25 | 1 pcs |
Cleaning tool DN 65 | 2 pcs |
Greasing tool 125 | 1 pcs |
Key of electric distribution box | 1 pcs |
Plug Mennekes 6 | 1 pcs |
Technicel documentation | 1 pcs |
Complete weight | 300 kg |
